Hydrogen Storage Materials: Metal Hydrides, Carbon Storage, and Safety Metallurgy

Introduction to Hydrogen Storage

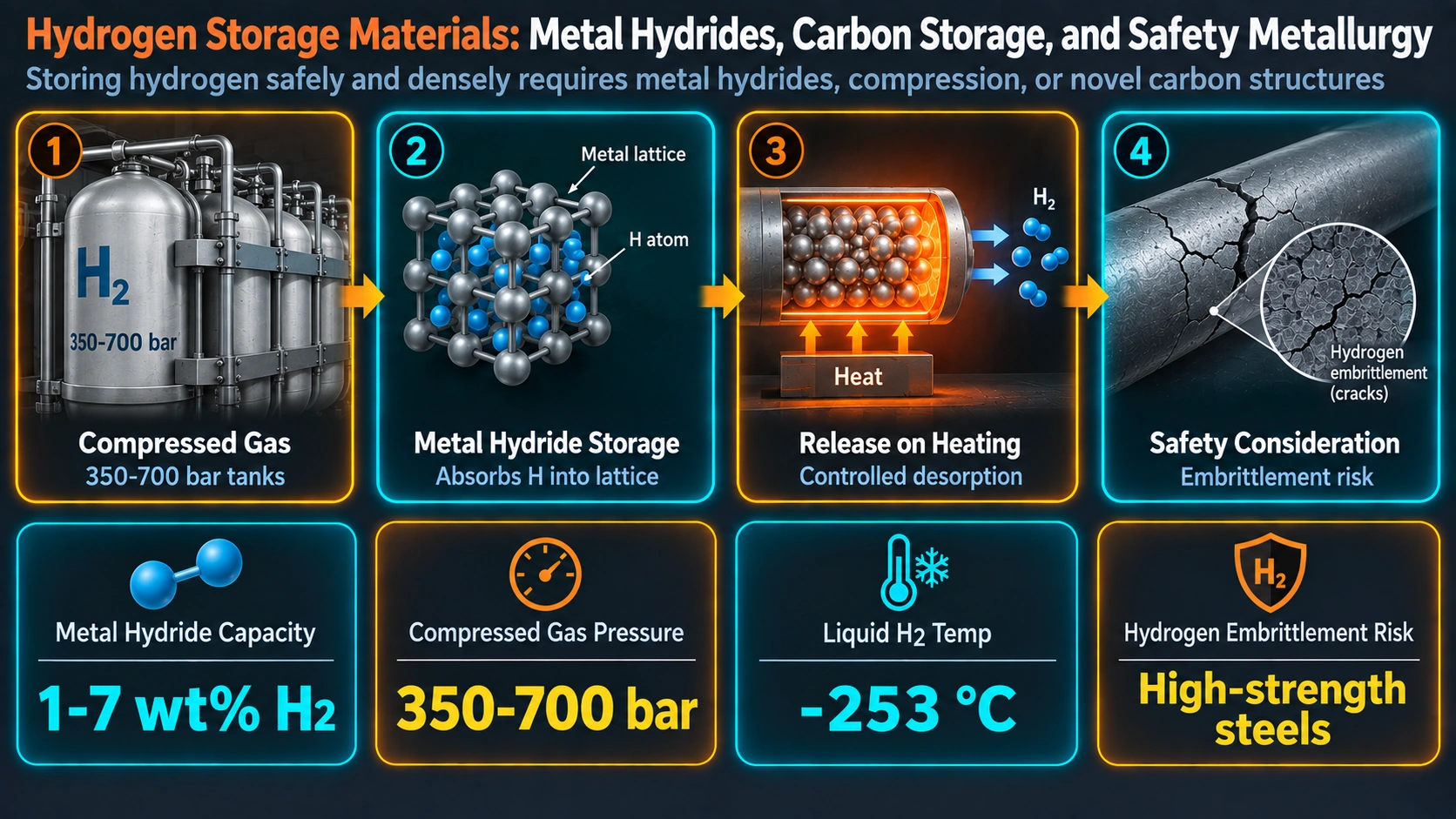

The hydrogen economy requires safe, efficient storage and transport of hydrogen. Materials metallurgy plays a central role — from the metal hydrides that absorb and release hydrogen through solid-state reactions, to the ultra-high-strength steels of compressed gas cylinders, to the cryogenic aluminium alloys of liquid hydrogen tanks. This article examines the metallurgical science of hydrogen storage from a materials engineering perspective.

Metal Hydride Storage

Metal hydrides absorb hydrogen by forming chemical bonds — typically in a two-phase reaction between a metal alloy and hydrogen gas. The process is exothermic on absorption and endothermic on release. Thermodynamics determines the equilibrium hydrogen pressure (plateau pressure) at a given temperature; the Van’t Hoff equation describes this:

ln(p_eq) = ΔH/(RT) − ΔS/R
(Van’t Hoff: equilibrium pressure vs temperature)

Hydrogen Embrittlement in Storage Infrastructure

High-pressure hydrogen pipelines and storage vessels experience hydrogen absorption from the gas phase. At 70 MPa operating pressure, hydrogen fugacity is sufficient to cause embrittlement in high-strength steels. Material requirements for hydrogen service:

• Hardness limit: <22 HRC (350 HV) — same NACE MR0175 limit applied to H₂ gas service
• Steel grades: SA-372 (low-alloy, quenched and tempered) or austenitic stainless steels preferred; martensitic grades above 35 HRC are prohibited
• Testing: Slow strain rate testing in hydrogen environment (ASTM G129) or fracture mechanics testing (ASTM E1681) to determine threshold stress intensity for HIC in hydrogen gas

Liquid Hydrogen (LH₂) Storage Materials

LH₂ boils at -253°C (20K) — the second coldest cryogen after liquid helium. At these temperatures, most structural metals undergo dramatic property changes:

• BCC steels: Become extremely brittle below DBTT (typically -60 to -100°C for structural grades). Completely unsuitable for LH₂ service.
• Austenitic stainless steels (304L, 316L): Retain excellent toughness to 20K; no DBTT. Standard for LH₂ piping and inner vessels.
• Aluminium alloys (2219, 5083): FCC, no DBTT, good cryogenic toughness. 2219-T87 is the standard material for NASA Space Shuttle external tank (LH₂ and LOX).
• Invar (36% Ni steel): Near-zero thermal expansion to cryogenic temperatures; used for precision cryogenic structures.

Frequently Asked Questions

Conclusion

The hydrogen economy demands materials that can safely contain, store, and release hydrogen at the temperatures, pressures, and cycling frequencies required for practical energy applications. Metal hydrides, ultra-high-strength cylinder steels, and cryogenic aluminium alloys each play specific roles determined by their fundamental metallurgy. Hydrogen embrittlement remains the primary safety concern for metallic components; materials selection below the HE susceptibility threshold combined with appropriate testing is non-negotiable for any pressurised hydrogen system. See also: Stress Corrosion Cracking and Aluminium Alloy Designations.
